Starter pack structure¶

The Starter Pack is a template Sphinx project. It provides a default file structure, a theme, and dependencies for Canonical documentation.

Sphinx¶

Sphinx is a documentation static site generator that converts reStructuredText or Markdown files into HTML. It’s the core software in the Starter Pack.

docs/conf.py is a configuration file that defines the properties of the Sphinx project such as project metadata and extensions.

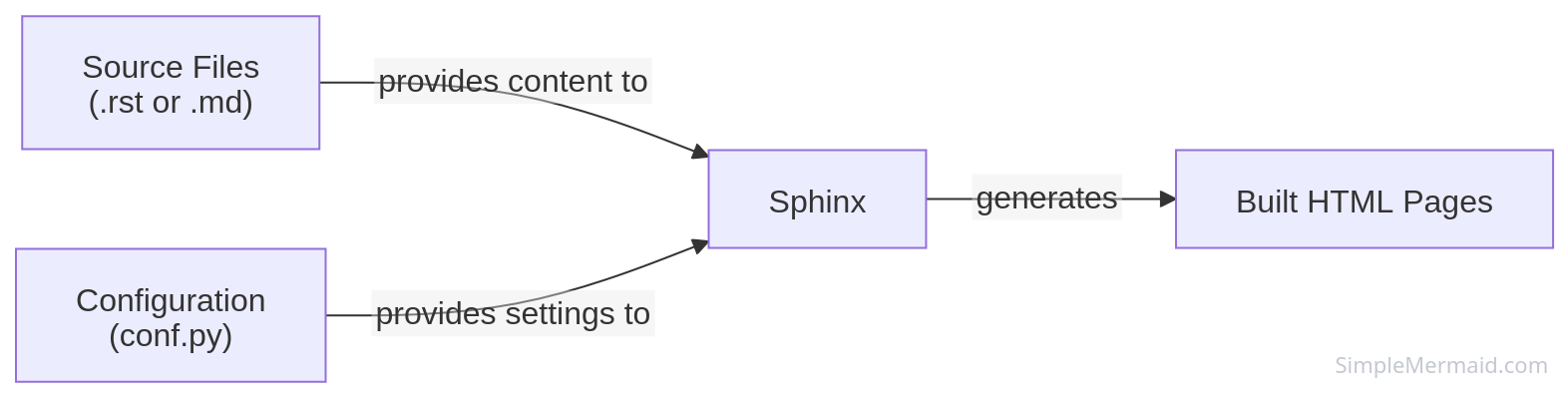

../../_images/sphinx.png — Sphinx as a documentation static site generator¶

Python¶

Because Sphinx is a Python application, the Starter Pack depends on Python and a Python package manager. Most of its dependencies are Python packages. Local builds of the Starter Pack require a Python virtual environment to isolate the project from the host system.

To be able to work on a Starter Pack project, your host needs Python 3.11, pip, and venv.

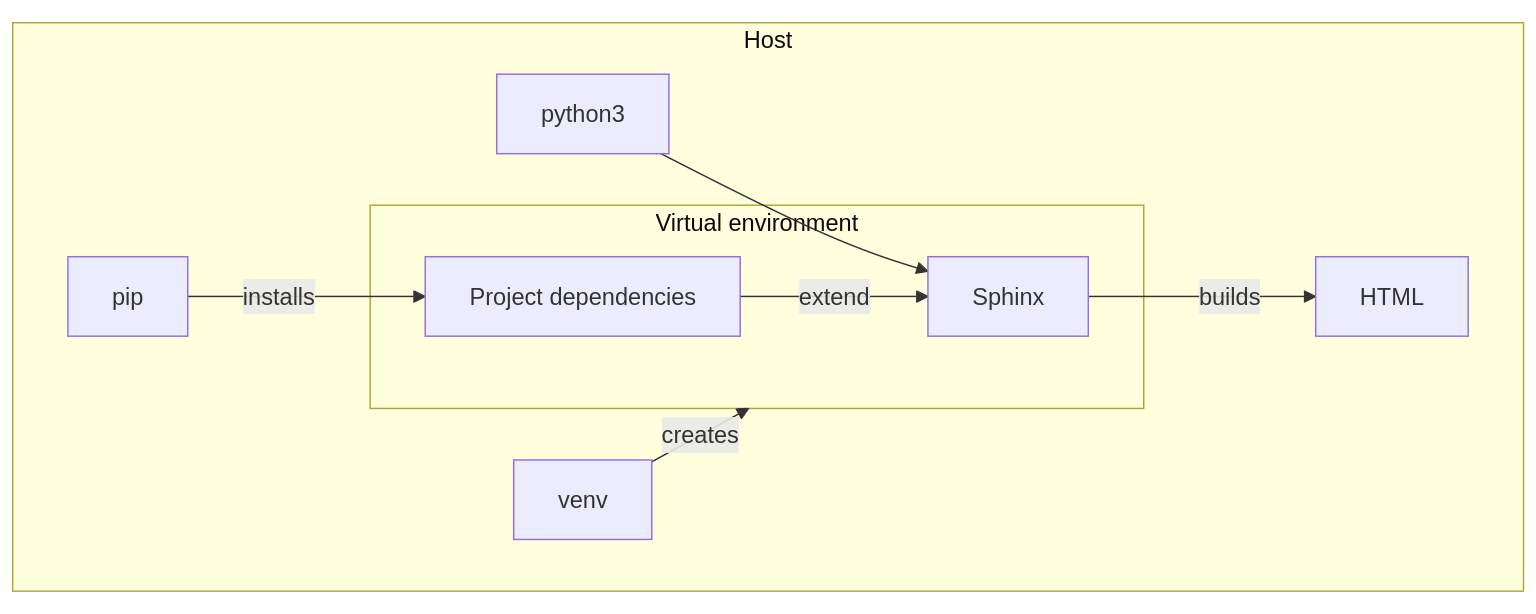

../../_images/python-starter-pack.png — Python’s role in the Starter Pack¶

Sphinx extensions¶

The syntax and behavior of Sphinx can be modified with extensions. These can be used to create diagrams, test code, and more.

The Starter Pack includes a curated and tested set of extensions.

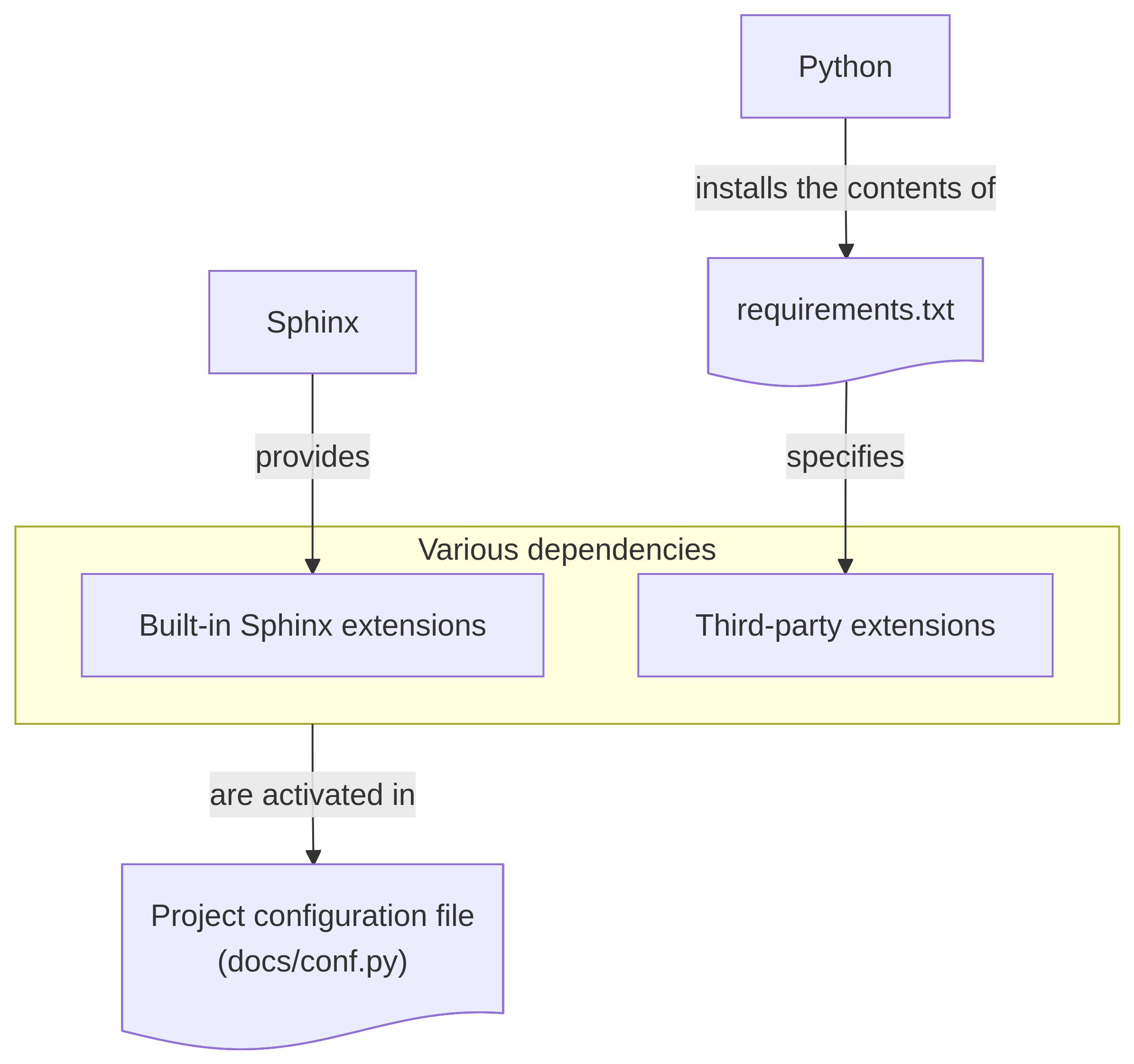

../../_images/extensions.png — Extension types¶

Built-in extensions¶

Built-in extensions do not need to be installed separately from Sphinx and can be enabled through the configuration file. The conf.py file has already been configured to enabled typical extensions necessary for documentation work.

Third-party extensions¶

If an extension is not built into Sphinx, you must include it in the requirements.txt file before enabling it in the Sphinx configuration file.

Extensions are Python packages, and the Starter Pack manages them with a requirements.txt file.

../../_images/third-party.png — Third-party extensions¶

Markdown support¶

By default, Sphinx uses reStructuredText. Markdown is supported through the MyST parser, which is enabled with the myst-parser extension.

Canonical theme¶

The Canonical theme is packaged as a standalone canonical-sphinx) extension. It is based on Furo and is designed to follow Canonical branding.

Command-line tools¶

The Starter Pack uses Make as its local build system. The Starter Pack’s Makefile provides a command-line interface for setting up the virtual environment, installing dependencies, building the documentation, and more.

Makefile¶

Some of the Makefile targets (such as html and linkcheck) provide Sphinx-native functionality for building documentation or performing tests in a simplified form while managing required dependencies. For example, instead of using the sphinx-build linkcheck SOURCEDIR OUTPUTDIR command, you can use make linkcheck.

See Build to learn how the local build process works.

Additionally, the Makefile provides commands to trigger third-party CLI tools, such as the Vale prose linter for Style guide linting.

Read The Docs configuration file¶

Read The Docs is a documentation building and hosting platform. It takes the documentation created using Sphinx (or other tools) and builds and publishes it online.

If you are publishing your documentation through Read the Docs, the Read the Docs build logic is declared in .readthedocs.yaml. The Starter Pack comes with a pre-configured .readthedocs.yaml with default values that should work for the majority of projects.

See Set up Read the Docs to learn how configure your Read the Docs instance.

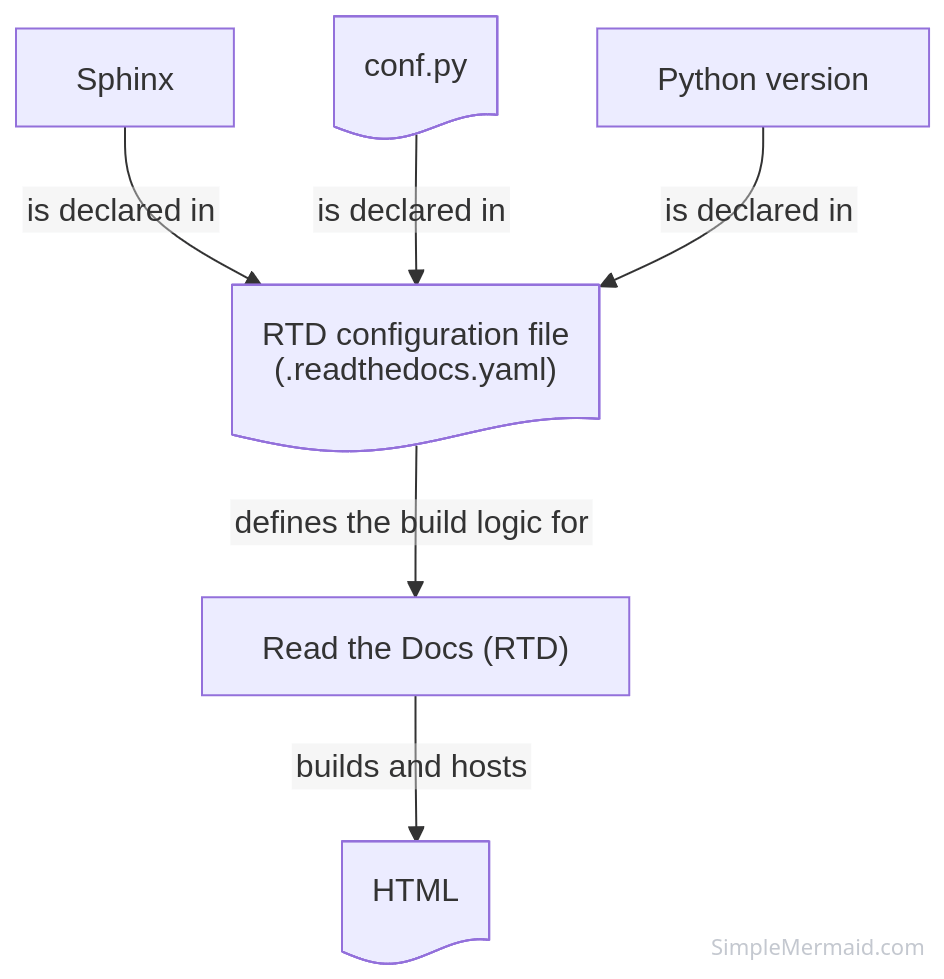

../../_images/rtd-build.png — Read the Docs build configuration¶
